Have you ever struggled to park perfectly in your garage? Sure, you could hang a tennis ball on a string, but where’s the fun in that? Ever since I was a kid, I’ve dreamed of having a traffic light in my house. Now that my wife and I are renovating our home, I finally had the chance to make this dream a reality—with a slight modification. While a full traffic light might not fit with our home’s aesthetic (according to my wife), I found the perfect alternative:

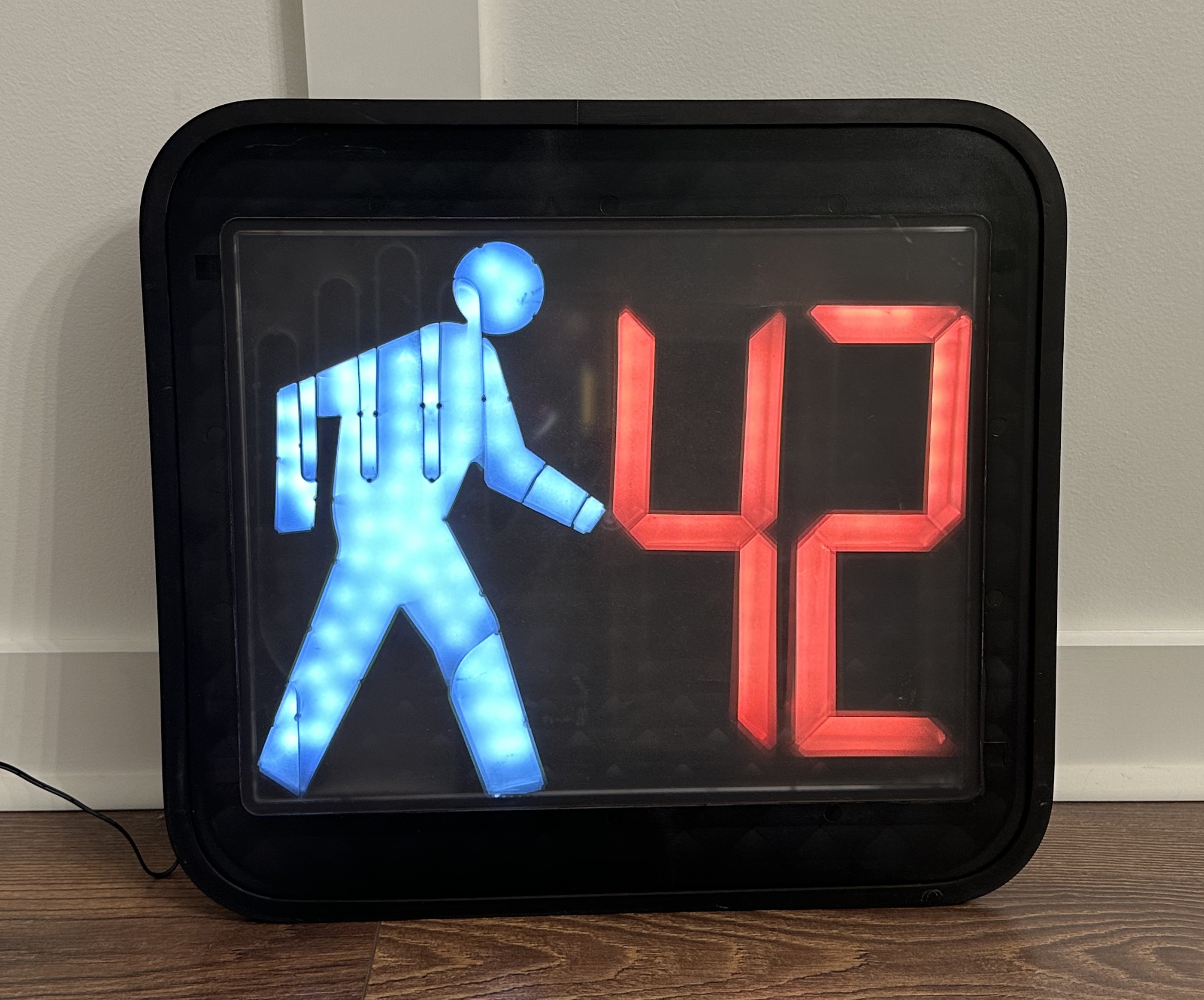

A pedestrian crossing light for our garage!
The Light

Turns out you can find anything on eBay, including a pedestrian crossing signal for just $40. This particular model was perfect because it had everything I was looking for:
- Hand and walk icons in the classic style I wanted (different models have varying designs)
- A 2-digit, 7-segment number display for distance readings
- Cheap enough that I can break it and not feel bad
The sign runs on 120V AC out of the box, making it easy to work with.
Hardware Modifications
The first challenge was getting inside the weatherproof housing. These signs are built to withstand the elements, so it took some work with a Dremel and several cut-off disks to carefully cut through the plastic shell. (Pro tip: wear eye protection for this part! 🕶️)
(Note that if you only wanted to control the hand and walk lights, that could be done with just a relay board without opening the housing.)
Inside, I discovered the sign was divided into two separate systems:
- The hand/walk signals
- The countdown timer display
The hand/walk system turned out to be surprisingly straightforward: it just needed ~12V DC applied to different sets of pins to control each signal. I was impressed to find that the system was designed with a fail-safe mechanism—if you try to activate both signals simultaneously, it defaults to showing the “stop” hand.
The numerical displays required a different approach. While I could have designed a control board for the existing LED setup, it would have required either:
- A large number of GPIO pins (one for each segment)
- A 7-segment driver circuit (which would struggle with the high power requirements of these large displays)

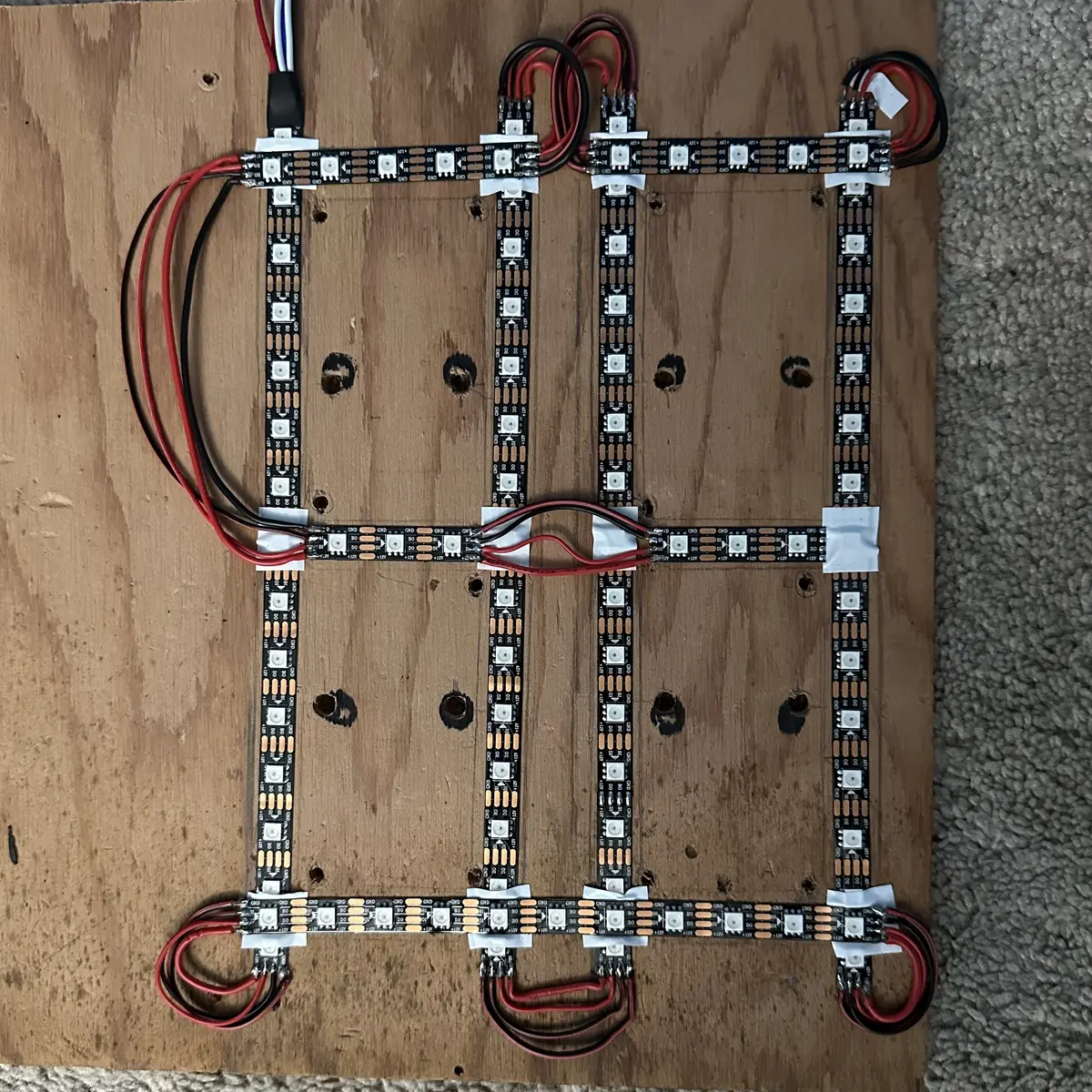

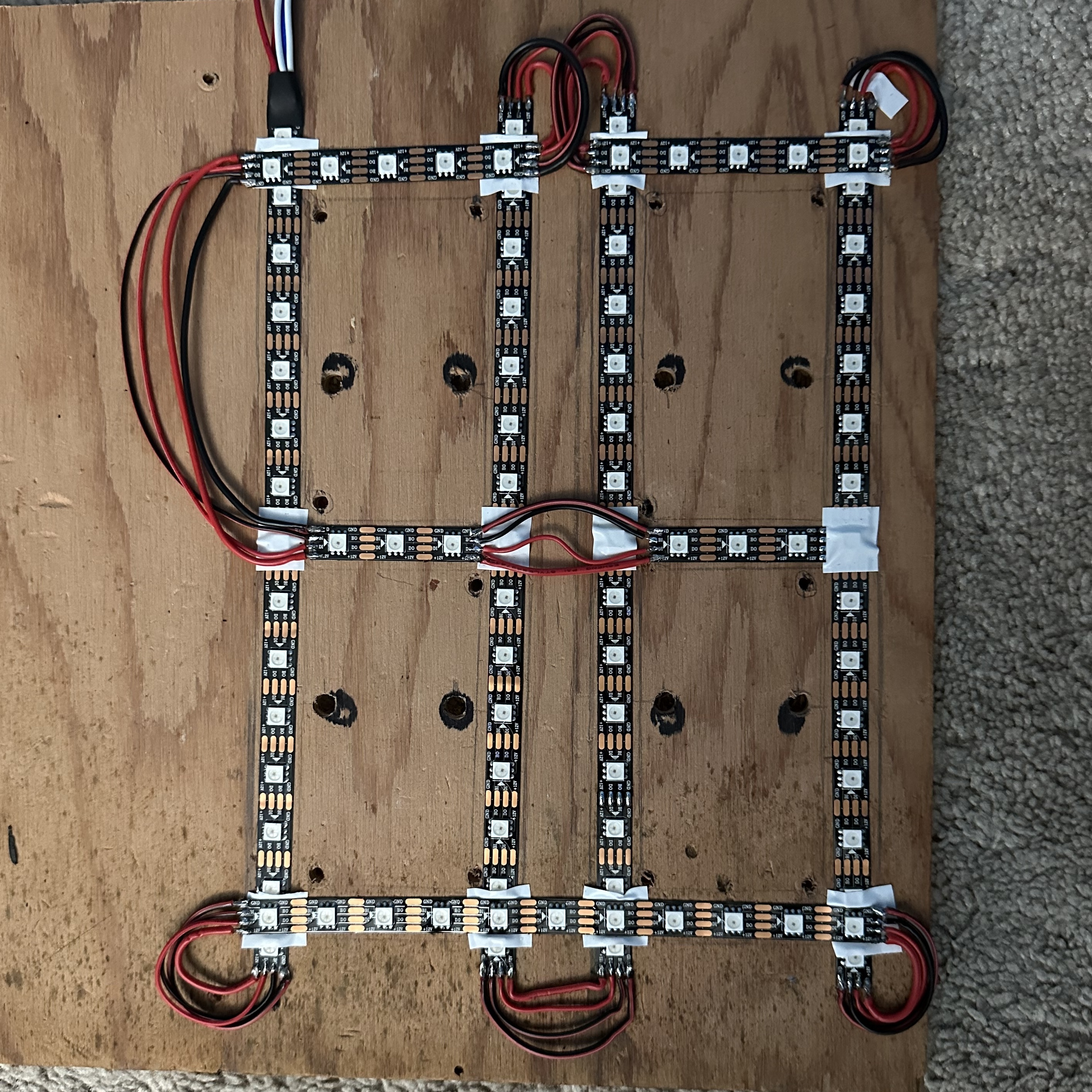

Instead, I opted for a more DIY solution: replacing the original LEDs with addressable RGB LED strips. By carefully cutting and chaining the strips to follow the segment patterns, I created a fully software-controllable display that offered bonus features like color control and effects.

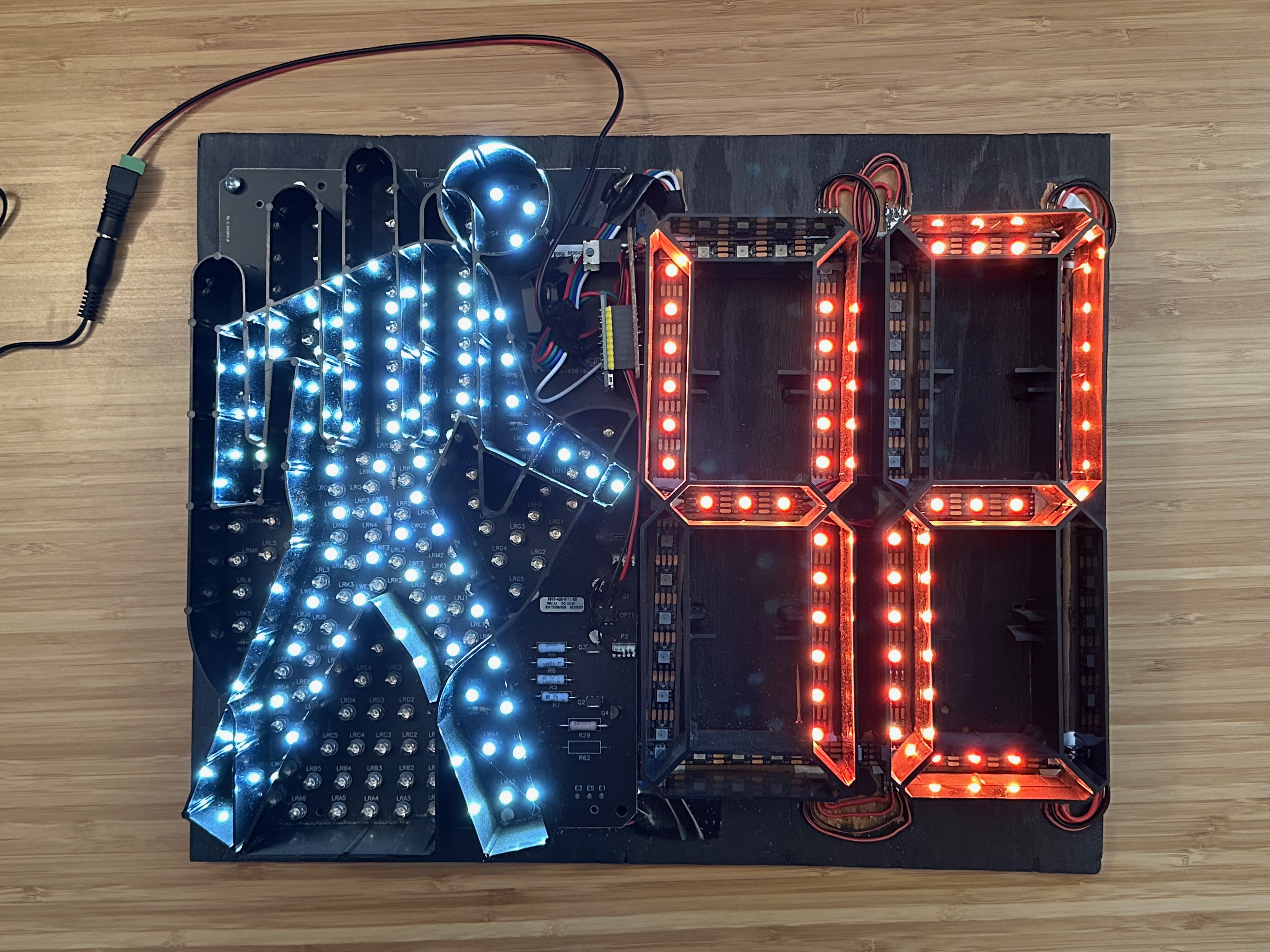

I didn’t think to paint the backing board black until after mounting these strips…
Making it Smart: Control System
For the brains of the operation, I chose an ESP32 coupled with some basic MOSFETs to handle the power switching for the walk/hand signals. I soldered these components to a piece of perfboard and managed to fit it in some empty space within the housing.

On the software side, I went with ESPHome, an excellent firmware framework that integrates seamlessly with Home Assistant.
Using ESPHome’s
light partition feature, I split the single addressable LED strip into a virtual light
for each of the 14 segments, plus a light
for each of the hand and walk signals.
light:
# One light strip snakes around the unit, covering both number displays.
# See the `partition` entries below for breaking up the strip into segments.
- platform: esp32_rmt_led_strip
rgb_order: GRB
pin: 22
num_leds: 87
rmt_channel: 0
chipset: WS2812
id: digit_display_light
internal: true
- platform: partition
name: Digit 1 Segment 1
id: dig_1_seg_1
internal: true
segments:
- id: digit_display_light
from: 77
to: 79
- platform: partition
name: Digit 1 Segment 2
id: dig_1_seg_2
internal: true
segments:
- id: digit_display_light
from: 69
to: 73
# Continued for 14 segments...
To make controlling the numbers from Home Assistant more practical, I also added a number
component to the ESPHome configuration. I’d recommend reading the actual code/config for that
here, but it takes a number -9 through 99 and figures out which segments to turn on.

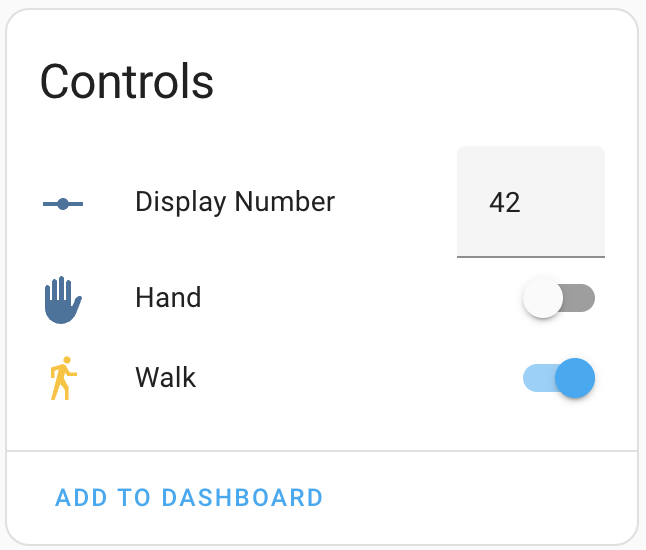

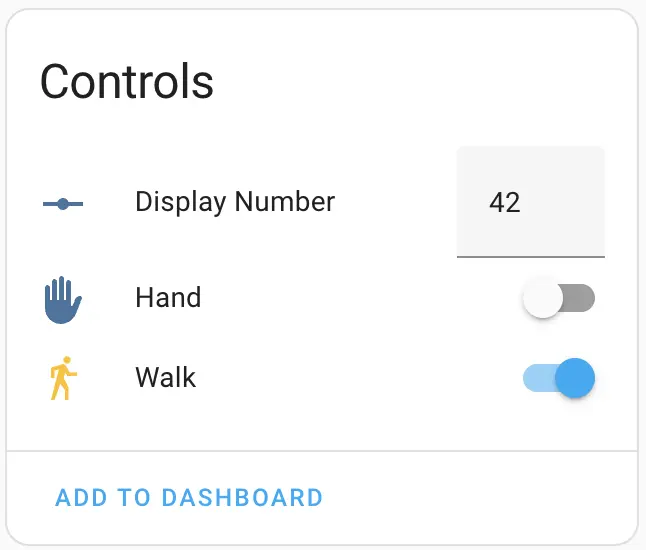

In Home Assistant, there is now a simple number input that I can set to any valid number to update the display.

Making it Useful: Parking Distance Sensing
With a fully controllable display on the wall, it was time to make it actually useful as a parking aid.
The classic way to do distance measurement with a microcontroller is using very cheap ultrasonic sensors like the ubiquitous HC-SR04. I went with a slightly upgraded and waterproof version: the JSN-SR04T Waterproof Ultrasonic Sensor. This is a nice alternative for a few reasons:
- Longer sensing range
- Waterproof/protected sensor (nice for a garage that I also use as a workshop)
- Compatible with the same ultrasonic libraries that work for the SR04
- Comes with long connection wires that makes mounting in the garage easier
I mounted the sensors on the garage wall, carefully aligned with each car’s bumper. After some calibration to determine the ideal parking position, the system provides real-time distance measurements through Home Assistant.
With some more ESPHome configuration and lambdas, changes to the distance will update the hand/walk signal and the number display.
sensor:
- platform: ultrasonic
name: "Range Sensor - Left"
unit_of_measurement: "inches"
# ...
on_value:
then:
# Display the distance the car has to move. If it's an invalid reading, blank the display.
- number.set:
id: display_number
value: !lambda >-
if (isnan(x)) {
return -10;
}
int display_value = max( -9, min( (int)(round(x) - id(target_distance_left).state), 99 ));
if (display_value >= 20) {
// Distances over 20 are noisy. Just display "--"
return -11;
}
return display_value;
# Update the hand/walk signals accordingly. If the car is less than 3 inches from the target, display the hand. Otherwise, display the walk.
- lambda: |-
if (isnan(x)) {
id(light_hand).turn_off().perform();
id(light_walk).turn_off().perform();
} else if ((x - id(target_distance_left).state) < 3) {
id(light_hand).turn_on().perform();
id(light_walk).turn_off().perform();
} else {
id(light_hand).turn_off().perform();
id(light_walk).turn_on().perform();
}
To make the system completely integrated, I added Home Assistant automations that automatically activate the correct parking sensor when a garage door opens. This creates a seamless experience where opening the garage door with the remote is the only action needed. Everything else happens automatically.
Live Demo!
Putting it all together, here’s the experience of driving into my garage:
Code and Resource Links
While I imagine each type of pedestrian signal is unique, this project should be repeatable with some basic tools and hardware. I used the following:
Parts
- Pedestrian Crossing Signal with Countdown Display: eBay listing, Manufacturer page with datasheet
- ESP32: ESP32 D1 Mini on AliExpress
- WS2815 12VDC Individually-Addressable RGB LED Strip: BTFLighting on AliExpress
- Miscellaneous 12+V DC MOSFETs for controlling the hand/walk LEDs
- 12V DC Power Supply
- JSN SR-04T Waterproof Ultrasonic Sensors: Available on Amazon/AliExpress/etc. Datasheet
